Laminator
Release time:2014-08-05 09:15:00 Click on the:

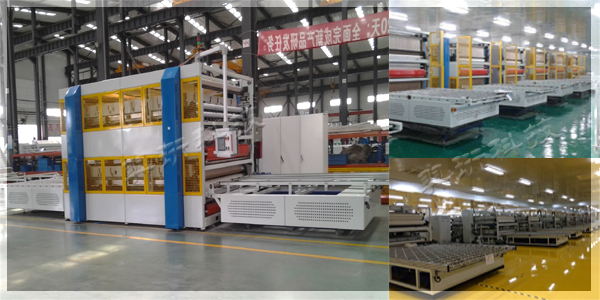

Multi-layer Automatic Laminator
- Professional design for solar module auto assembly line with 100MW annual capacity
- Both area and power saving compared with single layer laminator 2 sets
- EVA cleaning system with double cycle auto-running; control and maintenance easy, fast

- Operation & Control
Pneumatic lifting structure, and stable running with little noise;
Professional EVA cleaning system with double cycle auto-running;
Easy and fast control & maintenance;
Touch screen with international brand, and hi-tech PLC control;
New bus control, both transmission and laminating distributed long-distance I/O design;
Out-loading part with effective cooling design for module fast-cooling;
Intelligent monitor system optional can be installed for controlling the same type laminators.

- High Performance
Oil heat cycling and professional oil heating system with stable and uniform temperature;
Good performance vacuum system with international brand;
Three-phase laminating design with high module yield;
High quality and super-strong mechanical structure design, and area saving;
Lamination part with both mechanical and long length light curtain protection design.

- Main Specification Parameter

Laminating Area

Temperature

Uniformity

Temperature

Precision

Power

Temperature

Range

Weight

Air Supply

3600×2200 mm × 2

±2 °C

±1 °C

120KW

30~160°C

30T

0.6~1.0MPa
